PLS63

Performance MTC Module (LTE Cat 1) Global

The PLS63-W offers a global approach to cost-optimized IoT connectivity, with 18 Band LTE Cat.1, Eight Band 3G HSPA/UMTS, and Quad-Band GSM for seamless coverage across multiple wireless networks. Alternatively, where a global solution is not required, a variety of regional variants with the latest network banding deliver targeted connectivity for North America, Europe and APAC, Latin America and Japan.

Global and Regional LTE coverage with fallback options:

  • LTE Cat 1, Global and multiple Regional variants with latest network bonds grouping
  • 3G and 2G fallback
Contact Us Request SIM & Data Plan

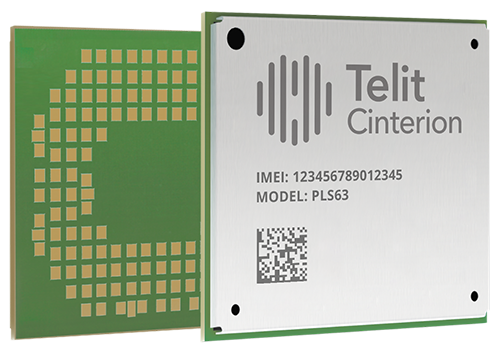

Green circuit board and silver metallic cover labeled "Telit Cinterion," showing IMEI 123456789012345 and model PLS63, with a QR code.
Overview
Tech Specs
Downloads
Related Products
Product Brief

Product Description

Fully Featured modem implementation:
– Integrated IP connectivity
– VoLTE and CS voice
– Extended set of AT commands

Lower Total Cost of Ownership:
– Embedded GNSS
– Embedded SIM
– Embedded Processing

State of the art security:
– Secure boot
– Secure key store
– Key life cycle management

Easy Connectivity and Lifecycle Management:
– Secure enrollment toward main cloud platforms
– Remote update and device management

Form Factor Family



  • LGA pad soldering mount, MSL3

Overview

Product Features

  • 3GPP Rel.10 Compliant Protocol Stack
  • FDD-LTE: bands 1, 2, 3, 4, 5, 7, 8, 12, 13,14 (PLS63-X only), 17 (PLS63-LA only), 18, 19, 20, 26, 28, 66, 71 (PLS63-X only)
  • TD-LTE: bands 38, 40, 41
  • UMTS (WCDMA/FDD): bands 1, 3, 2, 4, 5, 6, 8, 19
  • Quad Band GSM: 850, 900, 1800, 1900 MHz
  • Integrated GNSS support (GPS/BeiDou/GLONASS/Galileo)
  • SIM Application Toolkit, letter classes b, c, e with BIP and RunAT support
  • Control via standardized and extended AT commands (Hayes, TS 27.007 and 27.005)
  • Embedded IP stack with IPv4 and IPv6 support
  • TCP/IP stack access via AT command and transparent TCP/UDP services
  • Secure Connection with TLS/DTLS
  • Internet Services TCP/UDP server/client, DNS, Ping, HTTP, SMTP, FTP client
  • RoHS compliant

Specifications:

  • FDD-LTE Cat.1 DL: max. 10.2 Mbps, UL: max. 5.2 Mbps
  • HSPA+ Cat.8 data rates DL: max. 7.2 Mbps, UL: max. 5.76 Mbps
  • E/GPRS Class 12 DL: max. 237 kbps, UL: max. 237kbps
  • SMS text and PDU mode support
  • Multiple Operator VoLTE support, CSFB (circuit-switched fallback)
  • High quality narrow and wideband voice support for handset, headset and hands-free operation (HR, FR, EFR and AMR-WB)

Certifications

  • RED, GCF, CE, FCC, PTCRB, IC, UL, CCC, IFETEL, UKCA, Anatel, JATE, TELEC
  • AT&T (Firstnet), Verizon, Telstra, NTT Docomo, KDDI, DTAG, Vodafone

Dimensions:

  • 33 x 29 x 2.6 mm

Form factor:

  • LGA pad soldering mount, MSL3

Supply voltage range:

  • 3.0 – 4.5 V

Operating temperature:

  • -40°C to +85°C

Interfaces:

  • Power Supply for Baseband, Radio Domain
  • Pads for RX-Diversity /MIMO Antennas
  • Pads for GNSS antenna
  • USB 2.0 interface up to 480 Mbps
  • High speed serial modem interface ASC0
  • 16 GPIO lines shared with DSR, DTR, DCD (all ASC0), ASC1 (RXD, TXD, RTS, CTS), SPI, Fast-Shutdown, Network Status-Indication, PWM, Pulse-Counter lines, TX-Indicator, 700MHz-Indicator
  • ADC and I2C interface
  • Digital audio interface (PCM and I2S modes)
  • Dual UICC and U/SIM card interfaces 1.8V/3V
  • Lines for Module-On and Reset
  • DAI

Special Features:

  • USB Interface features a composite mode, compliant to Windows, Linux and Mac
  • Firmware update via USB and ASC
  • RLS Monitoring (Jamming detection)
  • Informal Network Scan
  • Cell ID based Location Support
  • Telit Cinterion® IoT Suite Services: firmware updates, trusted identity
  • Embedded Processing (optional)
  • NExT™ connectivity with external SIM,
    NExT™ embedded on -W
  • NExT™ eSIM provisioning

Drivers:

  • USB, MUX driver for Microsoft® Windows 7™, Microsoft®, Windows 8™ and Microsoft® Windows 10™
  • RIL Driver for Android
  • Ofono for Linux
User Guides, Documentation, Application Notes, and Firmware
Register for Downloads Access Downloads

Related Products

Product Comparison

PLS63-WPLS63-W-B
MarketGlobalGlobal
Frequencies
4G bands (MHZ)B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28, B66B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28, B66
3G bands (MHZ)B1,B2, B3, B4, B5, B6, B8, B19B1,B2, B3, B4, B5, B6, B8, B19
2G bands (MHZ)B2, B3, B5, B8B2, B3, B5, B8
VoiceYes–
