SL871L-S

GPS receiver

The SL871L-S is the companion GPS variant of the SL871L GNSS module. The SL871L-S is designed to comply with both GPS and QZSS constellations and is pin-to-pin compatible with the xL871 Family (SL871L, SL871, SL871-S).

  • Industry standard 10.1 x 9.7 mm footprint
  • Compliant with GPS and QZSS standards
  • Extremely low power consumption
  • Additional DC block for direct input from active antennas
  • Additional LNA for improved sensitivity and faster TTFF
  • A-GPS ephemeris file injection
  • Satellite Based Augmentation System (SBAS)
Contact Us

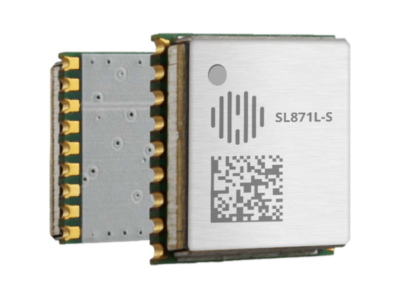

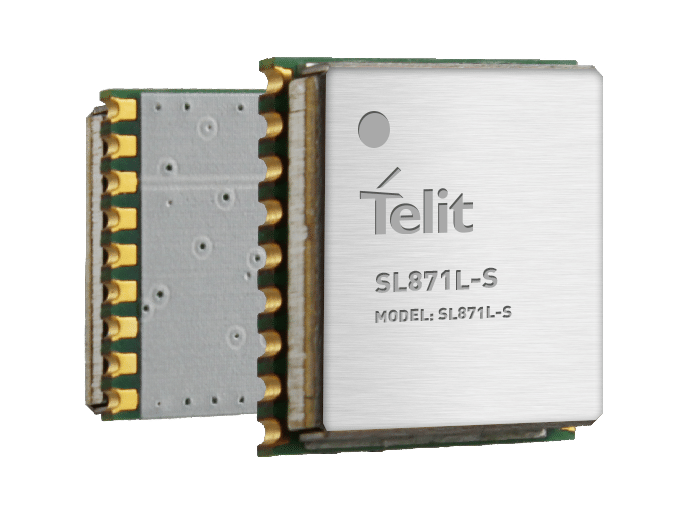

Close-up of an electronic module with a metallic casing, featuring a QR code and text "SL871L-S." The module has gold connectors on the side.
Overview
Tech Specs
Downloads
Related Products
Product Comparison
Product Brief

Product Description

The SL871L-S is the companion GPS variant of the SL871L GNSS module. The SL871L-S includes an ARM7 base band processor, embedded ROM memory and SAW filter. Unlike the standard SL871-S, the SL871L-S embeds also an additional LNA and a DC block. The additional LNA boosts RF sen-sitivity, TFF and the DC block allows direct active antenna input for a seamless integration.

Form Factor Family

The SL871 miniature form factor is a 10.1 x 9.7 mm, 18-pad castellated LCC package ideal for manual and automated manufacturing systems.

Overview

Product Features

  • Frequency band: GPS L1, QZSS L1 Bands
  • Standards: NMEA
  • Jamming Rejection
  • Additional LNA
  • A-GPS: ephemeris file injection
  • EGNOS, WAAS, GAGAN and MSAS capability embedded with correction of positional errors due to ionospheric and orbital disturbances

Certifications

  • RoHS compliant
  • R&TTE

Environmental

  • 10.1 x 9.7 x 2.4 mm, 18-pad, industry standard
  • LLC castellated edge package
  • Surface mountable by standard SMT equipment
  • Weight: 1 g
  • Temperature Range:
    • Operating temperature: -40° C to +85° C
    • Storage temperature: -40° C to +85° C

Power Supply

  • Range from 2.8 up to 4.3 V

Current Consumption:

  • Low power Tracking : 9 mW
  • Full power Tracking: 54 mW
  • Full power Acquisition: 61 mW
  • PTWS commands
  • FW upgradable
  • Locally generated predictions (EASY)
  • Server-generated predictions (EPO)
User Guides, Documentation, Application Notes and Firmware
Register for Downloads Access Downloads

Related Products

Product Comparison

SupplyConcurrent constellationLNAI2CUARTDC blockAnt ONAnt senseFlash
SL871K2L-18B1.8V (DC-DC)Max 4 +QZSS +SBAS••••••
SL871K2L-18P1.8V (LDO)Max 4 +QZSS +SBAS••••••
SL871K2L3.3VMax 4 +QZSS +SBAS•••••••
SL871L3.3VMax 3 +QZSS +SBAS•••••••
SL8713.3VMax 3 +QZSS +SBAS•••••
SL871-S3.3VGPS/QZSS only••
SL871L-S3.3VGPS/QZSS only••••
